Battery charger with built-in intelligence
CB12245AJ is a charging and testing unit with an integrated CANbus-communication functionality.
Thanks to our Battery-Care philosophy, this device optimizes its battery life. It is housed in strong enclosures and it is easy to install as it comes with an automatic coupling for DIN Rails. Once the batteries have been automatically charged, the CB chargers check the battery life status to avoid all risk of damage, thus allowing the device to remain permanently under load.
The CB12245AJ is based on the latest generation of microcontrollers and it covers more than 50 parameters regarding charging status and failure through the CANbus J1939 protocol. ADEL system battery chargers have four charging stages and provide an accurate battery diagnosis. These devices are considered a revolution in the High-Tech application of energy management.

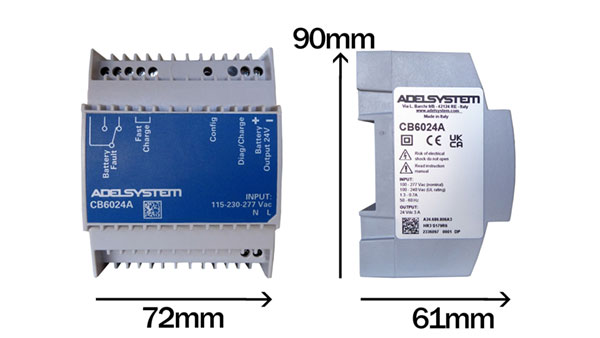

Extremely Small Size
Automatic four stage-charging profiles
Power Supply function
Batteries able to be charged with temperature compensation
Straightforward diagnostic and monitoring of battery and device
Maximum safety and protection through standard features
UL Approved (pending)
IP protection 20
Loading and monitoring of all battery types (AGM, Gel, Ni-Cd, Ni-MH, Li-Ion)
Automatic “de-rating” to comply with strong fields
CANbus J1939 allows the remote monitoring of more than 50 parameters regarding battery charging and charger status.
Multistage battery charger that works on all battery types. Recovery, boost, absorption and float. Recharge batteries that are close to zero. Customizable charging curves.
Battery care is our main philosophy. The battery chargers monitor reverse polarity, battery connection, short circuit, overload and charge current limit.
CAN Connection J1939 covers more than 50 parameters
One device for all battery types: Lead Acid, AGM, Gel, Ni-Cd, Li-Ion
Multistage Charging. Four Charging Modes: Recovery, Boost, Absorption, Float
Adjustable charging current
Selectable Fast-Charge option
Testing Battery: Reverse Polarity, Disconnected Battery, Short Circuit, Opened Element, Close-to-Zero Battery
