Battery charger with built-in intelligence



CB12245AJ is a charging and testing unit with an integrated CANbus-communication functionality.

Thanks to our Battery-Care philosophy, this device optimizes its battery life. It is housed in strong enclosures and it is easy to install as it comes with an automatic coupling for DIN Rails. Once the batteries have been automatically charged, the CB chargers check the battery life status to avoid all risk of damage, thus allowing the device to remain permanently under load.

The CB12245AJ is based on the latest generation of microcontrollers and it covers more than 50 parameters regarding charging status and failure through the CANbus J1939 protocol. ADEL system battery chargers have four charging stages and provide an accurate battery diagnosis. These devices are considered a revolution in the High-Tech application of energy management.

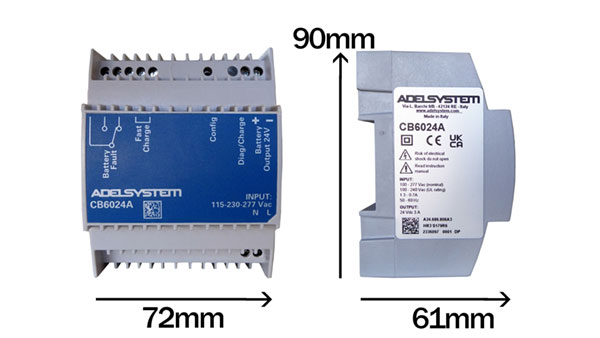

  • Extremely Small Size

  • Automatic four stage-charging profiles

  • Fast-loading technology

  • Power Supply function

  • Batteries able to be charged with temperature compensation

  • Straightforward diagnostic and monitoring of battery and device

  • Maximum safety and protection through standard features

  • UL Approved (pending)

  • IP protection 20

  • Loading and monitoring of all battery types (AGM, Gel, Ni-Cd, Ni-MH, Li-Ion)

  • Automatic “de-rating” to comply with strong fields

Insight




Remote Controller

CANbus J1939 allows the remote monitoring of more than 50 parameters regarding battery charging and charger status.

Battery Charger

Multistage battery charger that works on all battery types. Recovery, boost, absorption and float. Recharge batteries that are close to zero. Customizable charging curves.

Battery Tester

Battery care is our main philosophy. The battery chargers monitor reverse polarity, battery connection, short circuit, overload and charge current limit.



Benefits



  • CAN Connection J1939 covers more than 50 parameters
  • One device for all battery types: Lead Acid, AGM, Gel, Ni-Cd, Li-Ion
  • Multistage Charging. Four Charging Modes: Recovery, Boost, Absorption, Float
  • Adjustable charging current
  • Selectable Fast-Charge option
  • Testing Battery: Reverse Polarity, Disconnected Battery, Short Circuit, Opened Element, Close-to-Zero Battery
  • Wide input voltage range: 115-230-277 Vac
  • One single device for 12-or 24-VDC-Output
  • Power Supply Function
  • Fail Contact Alarm
  • LED Diagnosis Alarm
  • Suitable for DPY351








Generator Sets ,Gen set, Engine Starting, Industrial Fire Protection  Systems Water Pumping
