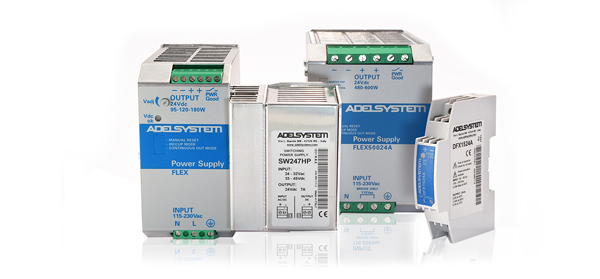

The Adel system offers a truly complete range of industrial power supply units for a whole range of different applications. The wide range of input voltages enables them to operate in any part of the world. UL and CSA type-approved, with design based on experience gained over the years on more than 240 models, they are DIN Rail mountable, simple and safe and offer IP20 protection. The range includes FLEX, PSM and PST power supply units. FLEX units, designed to provide 1, 2 and 3-phase solutions for a sector in constant evolution, are characterized from a remarkable flexibility of use that allows them to satisfy the most varied applicative requirements, according to the existing norms. Their concept takes cue from by now consolidated lines PSM (1- and 2-phase) and PST (3-phase), whose multiple applications testify of their reliability and robustness.

DFLEX Power Supply

Main Features:

  • For industrial and domestic applications
  • Wide input range: 100-240 Vac
  • Range product from 15 to 60 W
  • Protection class II
  • Wide temperature range: -25 to +70°C
  • Continuous Mode protection for Overload and short-circuit
  • DIN Rail and wall mount; Automatic Snap on
  • Extremely small size, more efficiency
  • 3 years warranty

Output Voltage:

  • 12;24 Vdc

Output Direct Current:

  • 1 phase: 0.6 - 2 - 2.8 A

Power Supply DFLEX are the best devices for industrial and domestic applications, especially suitable for applications for the automation of buildings. Ideal applications for low profile panel. Single phase input, range from 15 to 60W, in robust container. Wide range of input voltage. High temperature range from -25 + 70°C. Lower Output impedence. Operation in continuous mode, in short-circuit and overload situations. High Efficiency even at low power. Developed for mounting in: DIN Rail built in auto shooting also screw mount for wall applications without the addition of pieces.



  •
» Datasheets and Manuals Scarica File Allegati
Flex Power Supply Units

Main features:

  • Competitive price/performances ratio.
  • 3 protective functions: Hiccup Mode, Fold Back, Restart after Main
  • Declared ambient temperature operations field: 40,50 e 60°C (suitable for any type of applications)
  • Only one product for 230-400-500 Vac
  • Standards Conformity: EN 60204-1 and EN/IEC 60529 (IP20 protection class)
  • DIN Rail Mounting
  • Extremely small size

Output Voltage:

  • 5; 12; 24; 48 Vdc

Output Direct Current:

  • 1-phase: 2 – 2,5 –5 - 7,5 – 9 -14,5 –25A
  • 2-phase: 5 –7,5 –14,5A
  • 3-phase: 25A

The FLEX range of products is characterized from 1, 2 and 3-phase input up to 500W with current rating ranging to 25A and a power flexibility that reach the 50% of the rated current In. The declared ambient temperature operations field start from 40 up to 60°C. Three short-circuit over load protections, (Hiccup Mode, Fold Back e Restart after Main), the extremely small sizes of the units and the appliance to the EN 60204-1 Safety of Electrical Equipment Machines change the way to supply power to the control panel. Besides the 1-phase 115-230Vac units we offer the 2-phase 230-500Vac units, which allows to use and store only one product.

» Datasheets and Manuals Scarica File Allegati
PST (3-phase) Power Supply Units

Main features

  • Ambient temperature operation field: -25 ÷ 60°C
  • IP20
  • DIN Rail Mounting
  • Extremely small size
  • Current reserve

Output Voltage:

- PST 3-phase: 24 - 48Vdc

Output Direct Current:

- PST 3-phase: 40A

The PST Range of products is characterized from 3-phase power supply units, max power 960W and current up to 40A. These units, so important for Adel System's story in the power supply continuity field, are also available with output to 5V and 12V, suitable for complex applications and output to 48 Vdc, with specific features designed for driving control.


» Datasheets and Manuals Scarica File Allegati
SW Non-isolated AC/DC and DC/DC Converters

Main features:

  • Input rated voltage: 24 Vac, 24 Vdc, 48 Vdc
  • Output: 5 - 12 - 24 Vdc
  • Output In: 3 - 5 - 7 A
  • Non-adjustable output
  • Extremely compact dimensions
  • Ambient temperature operation field: 0 - 50° C

The SW range comprises single-output power supply units with an excellent price-performance ratio. Very small in size, these power supplies are 90% efficient. All models have short circuit and overload protection. They do not require any form of regulation.

» Datasheets and Manuals Scarica File Allegati
PFAL Non-isolated AC/DC and DC/DC Converters

Main features:

  • Input rated voltage: 24 Vac, 24 Vdc, 48 Vdc
  • Output: 5 - 12 - 24 Vdc
  • Output In: 0,8 ÷ 20 A
  • Adjustable output ± 10% ±90%
  • Extremely compact dimensions
  • Ambient temperature operation field: 0 - 50° C

The PFAL range of single-output power supply units control output currents up to 20A and can guarantee stable output voltage. The entire range, designed for connection to a transformer secondary, enables both serial and parallel connections to be made. They are housed in metal cases, are DIN Rail Mountable and have short-circuit and overload protection and adjustable output.
