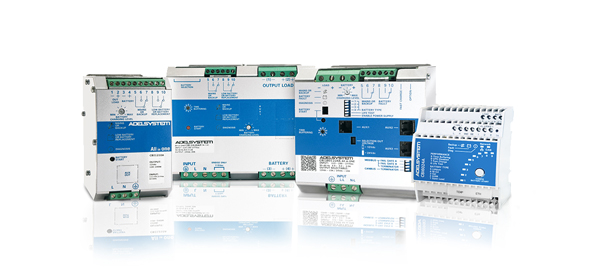

This is a revolutionary line designed to provide uninterruptible power, whatever the system conditions are, through a sophisticated and completely automatic management of any type of industrial battery. Easy to install, these compact devices perform three key functions: Power Supply, Back Up Module and Battery Charger. The UPS range is merely an extension of the CBI range, conceived to enhance some of its peculiar features, such as the RS 232 output connection, dual output and load voltage kept separated from the Battery Charger voltage.

The devices are compliant with CEI 0-16 and ENEL DK5600

Uninterruptible power supply output DC "All In One"

Main features:

  • Output voltage 12,24,48 Vdc even in case of power outage (shortage)
  • Output current 2,5 A ÷ 20 A even in case of power outage (shortage)
  • Automatic allocation of available power between load and battery charging up to twice-rated output current
  • Visual indication of "power shortage","defective battery", "battery voltage< 30%", "battery charging level", self-diagnostic with flashing LED code
  • Warning relays: "main or back-up" and "defective/flat battery" with galvanic isolated output contacts NO-NC
  • 3 charging levels: "boost", "trickle" and "recovery"
  • Self-diagnosis "overload", "battery sulfutation", "reverse polarity connection", "elements in short circuit", "protection against short circuit"
  • Compatible with a remote connection to select "boost" or "trickle" charging mode
  • Accessories upon request: external temperature sensors; voltage drop compensation; remote LED display
  • Compact dimensions
  • Ambient temperature operation: -10 ÷ 50° C
  • IP 20

The CBIs combine the functions of Power Supply with those of Back Up Module and of Battery Charger. They use switching technology with microcontrollers and optimize the loading and unloading times of the accumulator without a deep discharge, the switching from the battery to the charger without any interruption, automatic protection without fuse against the reserve polarity, short circuit and overload and overvoltage. They carry out diagnostic checks on the inner battery through the Life Test, enabling the users to select the most appropriate charging curve to maximize the efficiency of the system and to guarantee a long-life battery while intensifying its performances. They are equipped with relays to warn against the power outage and the defective battery. They conform to the most innovative battery management as well as electrical safety standards. They can be mounted on DIN Rails.

» Datasheets and Manuals Scarica File Allegati
Uninterruptible power supply output DC "UPS"

Main features:

  • Input rated voltage 115, 230, 400Vac
  • Output: 12, 24Vdc, in case of fault in the main too
  • Output In: 0,7A ÷ 10A, in case of fault in the main too
  • Signals for “Battery Fault”; “Low Battery”; “Replace Battery”
  • Life test function (not on all models)
  • Protections against "Short-circuit"; "Over load"; "Over voltage out" and "Reverse battery"
  • 2 charging modes: “Boost”; “Trickle”
  • Accessories on demand: external temperature probe for voltage compensation; RS232 connection output
  • Battery charger indipendent from the power supply (not on all models)
  • Small size
  • Ambient temperature operation field: -10 ÷ 50°C
  • IP20

These are specific products for special uses which feature the generic functions of the CBI series in detail. In particular, the UPS2410C features all the characteristics necessary for connection to a PC, such as RS232 connection. The range of UPS industrial power supplies, with single or double output, guarantees 12 and 24Vdc uninterruptible output and is also available for 400Vac input. Low Cost versions are also available (UPS242A and UPS123A). All UPS feature Time Buffering control. They comply with the latest regulations, including those concerning electrical safety. DIN Rail Mountable.

» Datasheets and Manuals Scarica File Allegati
PSM (1-phase) Power Supply Units

Main features:

  • Ambient temperature operation field: -25 ÷ 60°C
  • IP20
  • DIN Rail Mounting
  • Extremely small size
  • Current reserve

Output Voltage:
– PSM 1-phase: 5 – 12 - 24 - 48Vdc
- PSM 2-phase: 24Vdc
Output Direct Current:
– PSM 1-phase: 1,5 – 2,5 – 5 - 7- 10A

PSM
The PSM range of products includes the following power supply units: 1-phase units, max. power 240W and current starting from 1,5 up to 10A, and 2-phase units, suitable for an input from main up to 240W and with current from 5 till 10A. These units, so important for the Adelsystem’s story in the power supply continuity field, are also available with output to 5V and 12V, suitable for complex applications and output to 48 Vdc, with specific features designed for driving control.
